Engine Identification
In order to ensure correct Tecumseh Engine Identification all you need to do is to take a closer look at the engine model number which is located under the cover and enter this number on the below mentioned link to get correct and complete information about the engine and its specifications. Identification codes are also mentioned below for 2004 and post 2004 production models.
For pre- 2004 engines you can seek help from Tecumseh conversion charts. Once you succeed in correctly identifying the engine, it becomes a lot easier for you to find the engine parts from the parts lookup table. You can even repair and service these small engines at home. All this is good for ensuring maximum fuel economy and crisp working of the engine.
Tecumseh Snow king
Snow removal is a tricky task. Winter storms and extremely cold conditions can create huge additional work for the homeowners and the small businessmen. Tecumseh can help you to remove a large section of snow. You can find top quality Tecumseh snow King removing equipments such as blowers, snow kings, electric blowers, etc.
The task of snow removing can be performed by the households as well as by the governments and institutions. Browse our large section of tools and equipments to make your work easier and quicker.Tecumseh Engine comes with a pump and auger. The main job of the auger is to churn ice and the same is being sent towards the pump.
Snow which is collected is thrown to a higher distance with the help of a pump. One of the best things about Snow King Engine is that it performs in a highly efficient manner under extreme cold conditions. Famous for its long lasting and quite impressive performance these devices can help you in a very fast and easy manner. As the winter season is approaching fast, you must ensure replacement of the old and faulty parts and clean the inside of the engine with high quality cleaner.

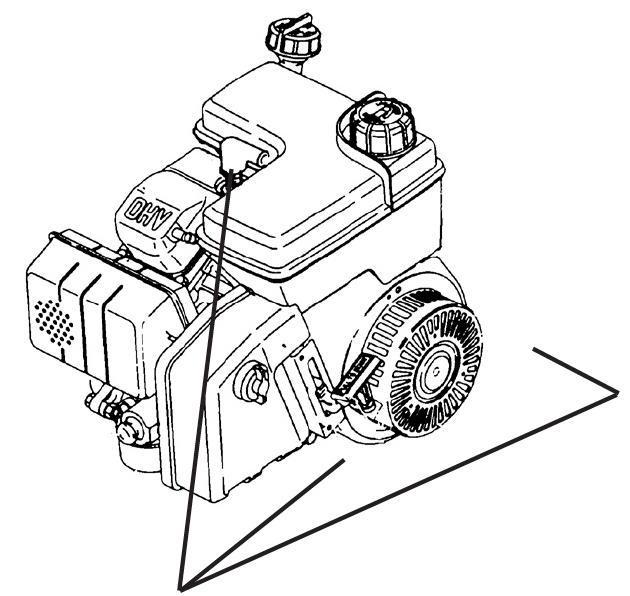

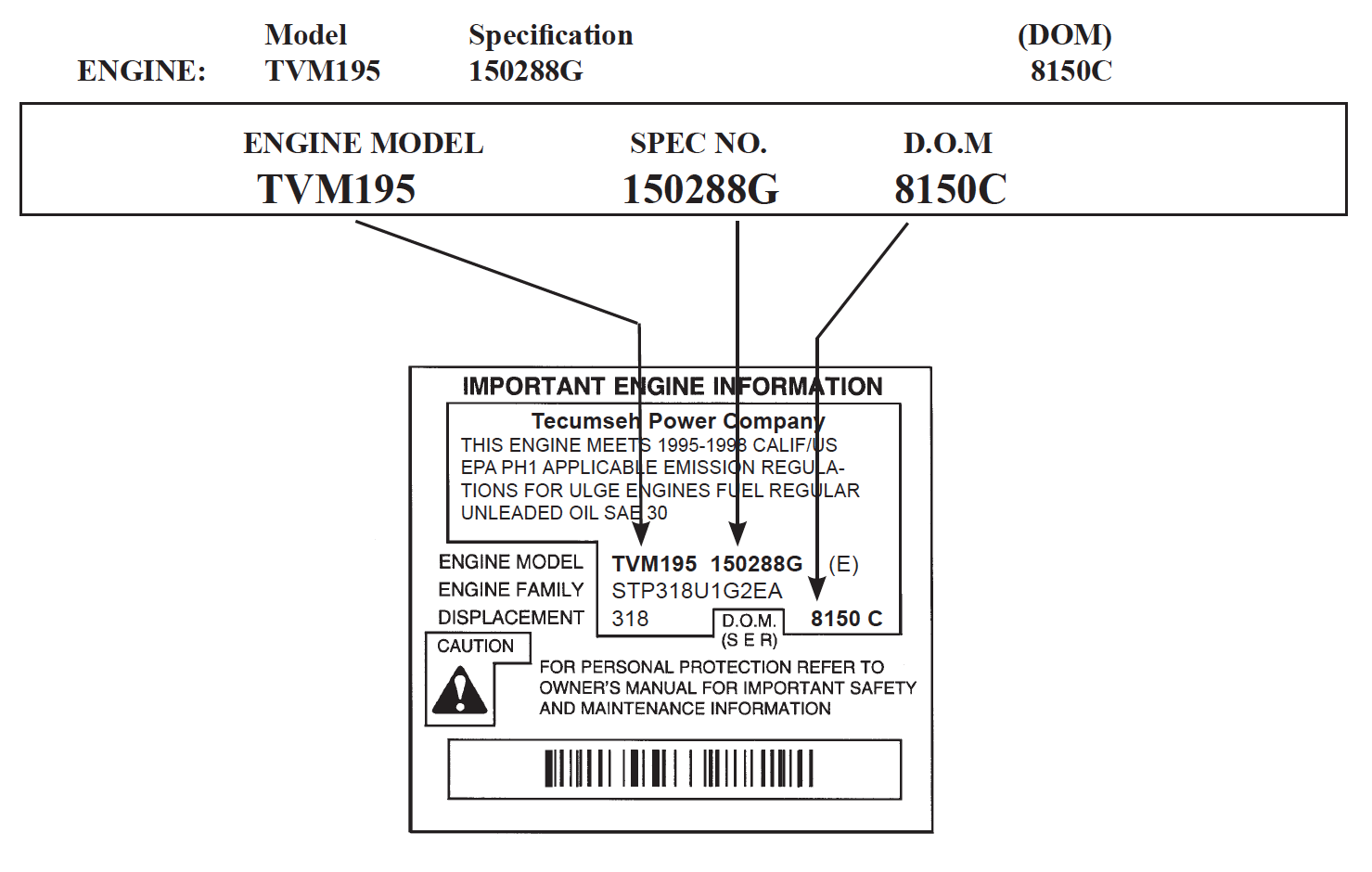

Tecumseh Engine Identification Pre-2004 Models

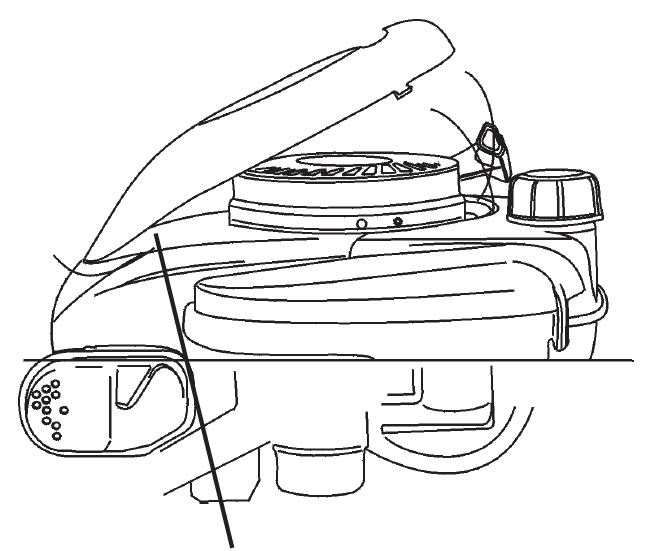

Engine Model Number Located Under Cover
Engine Model Number Located on Side
Engine Number Located on Front
Tecumseh Engine Identification Post-2004 Models
Engine Model Number Located Under Cover
Engine Number Located on Side
Engine Model Number Located on Front

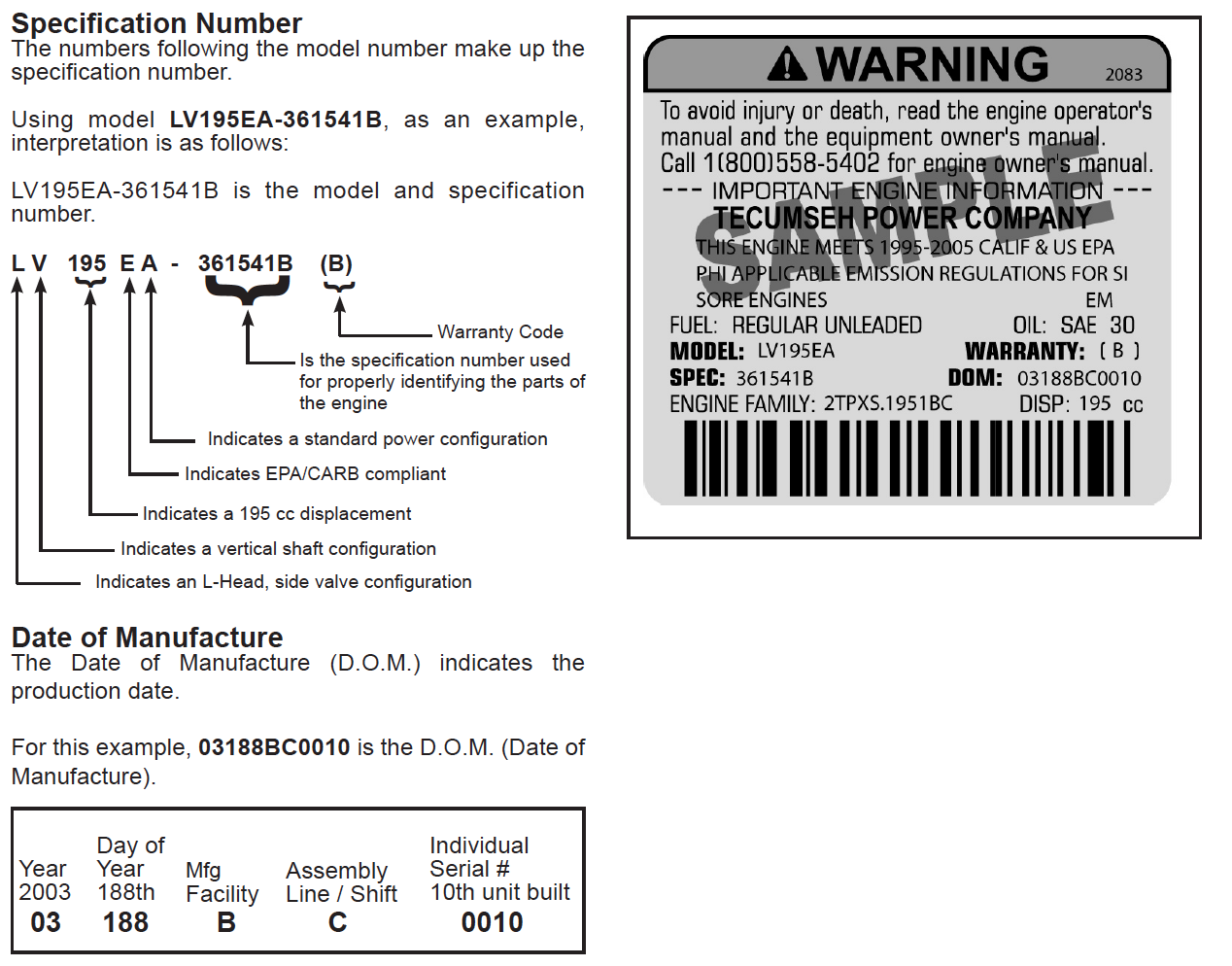

Tecumseh Engine Identification Codes
4-Cycle
| Code | Meaning |
|---|---|
| ECH | Exclusive Craftsman Horizontal |
| ECV | Exclusive Craftsman Vertical |
| H | Horizontal Shaft |
| HH | Horizontal Heavy Duty (Cast Iron) |
| HHM | Horizontal Heavy Duty (Cast Iron) (Medium Frame) |
| HM | Horizontal Medium Frame |
| HMSK | Horizontal Medium Frame (Snow King) |
| HMXL | Horizontal Medium Frame (Extra Life) |
| HS | Horizontal Small Frame |
| HSSK | Horizontal Small Frame (Snow King) |
| HXL | Horizontal (Extra Life) |
| LAV | Lightweight Aluminum Frame Vertical |
| LEV | Low Emissions Vertical |
| LH | L-Head Horizontal |
| LV | L-Head Vertical |
| OH | Overhead Valve Heavy Duty (Cast Iron) |
| OHH | Overhead Valve Horizontal |
| OH195 | Overhead Valve Horizontal (195 cc's) |
| OHM | Overhead Valve Heavy Duty Horizontal (Medium Frame) |
| OHSK | Overhead Valve Horizontal (Snow King) |
| OHV | Overhead Valve Vertical (Medium Frame) |
| OV | Overhead Valve Vertical |
| OVM | Overhead Valve Vertical (Medium Frame) |
| OVRM | Overhead Valve Vertical (Small Frame) (Rotary Mower) |
| OVXL | Overhead Valve Vertical (Medium Frame) (Extra Life) |
| TNT | Toro ÔNÕ TecumsehPower (Toro Exclusive Series) |
| TVEM | TecumsehPower Vertical European Model |
| TVM | TecumsehPower Vertical (Medium Frame) (Replaces V & VM) |
| TVS | TecumsehPower Vertical Styled |
| TVT | TecumsehPower Vertical Twin |
| TVXL | TecumsehPower Vertical (Extra Life) |
| V | Vertical Shaft |
| VH | Vertical Heavy Duty (Cast Iron) |
| VLV | Vector Lightweight Vertical |
| VLXL | Vector Lightweight Vertical (Extra Life) |
| VM | Vertical Shaft (Medium Frame) |
| VSK | Vertical Snow King |
| VTX | Vertical Twin |
2-Cycle
| Code | Meaning |
|---|---|
| TH | Two Cycle Horizontal Shaft |
| TM | Two Cycle Multi-position Operation |
| TV | Two Cycle Vertical Shaft |
Tecumseh Engine Identification Conversion Charts for Pre-2004 Engines
4-Cycle
| Old Model Number | New Model Number |
|---|---|
| LEV90 | LV148EA |
| LEV 120 | LV195EA |
| HSSK50 | LH195SA |
| HSSK55 | LH195SP |
| VSK90 | LV148SA |
| OHV135 | OV358EA |
| OHV180 | OV490EA |
| TVT691 | OV691EA |
| VTX691 | OV691EP |
| OHH60 | OH195EA |
| OHH65 | OH195EP |
| OHSK70 | OH195SA |
| OHSK75 | OH195SP |
| HMSK90 | LH318SA |
| HMSK110 | LH358SA |
| OHSK110 | OH318SA |
| OHSK130 | OH358SA |
| OHM110 | OH318EA |
2-Cycle
| Old Model Number | New Model Number |
|---|---|
| TC300 | TM049XA |
| HSK870 | TH139SP |
| HSK600 | TH098SA |
| AV520 | TV085XA |
