630894

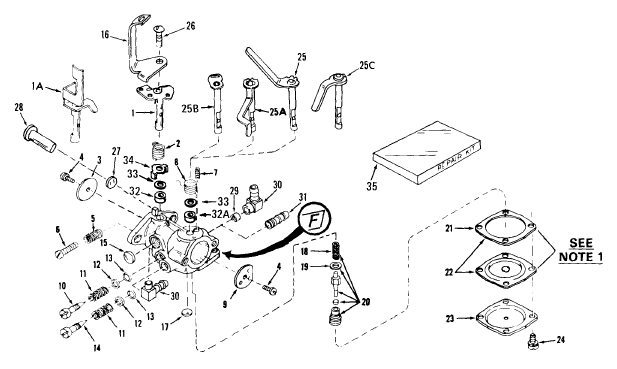

Tecumseh Carburetor 630894
Sl.No | Part Description | Part number | Notes | Purchase |
---|---|---|---|---|
1 | "Shaft & Lever Assembly., Throttle | 631863C | replaces 631863 | |
2 | Spring, Return | 631767 | replaces 632016 | |
3 | Shutter, Throttle | 631036 | ||
4 | Screw, Throtttle & Choke shutter | 650506 | ||
5 | Spring, Regulating screw | 630766 | ||
6 | Screw, Idle regulating | 651025 | replaces 650417 | |
8 | Spring, Choke return | 630757A | ||
9 | Shutter, Choke | 630758 | ||
10 | Screw, Idle adjustment | 631562 | ||
11 | Spring, Adjustment screw | 630738 | ||
12 | Washer, Adjustment screw | 630739 | ||
13 | "O" Ring, Adjustment screw | 630740 | ||
14 | Screw, Main adjustment | 630737 | ||
15 | Plug, Welch | 630748 | ||
17 | Plug, Welch | 632554 | replaces 630746 | |
18 | Spring, Valve | 631049 | ||
19 | Gasket, Valve Seat | 630742 | ||
20 | Inlet Needle, Seat, Gasket & Spring Assembly. | 630932A | ||
21 | Gasket, Diaphragm | 630750A | replaces 630750 | |
22 | Diaphragm Assembly. | 630978 | ||
23 | Cover, Diaphragm | 630751 | ||
24 | Screw, Cover | 650545 | ||
25B | Shaft & Lever Assembly., Choke | 630877 | ||
30 | Fitting, Fuel inlet | 632527 | replaces 631775 | |
35 | Repair Kit | 631893A | replaces 631893 |
Complete Tecumseh carburetor guide with diagram details of CA 630894 Tecumseh.
