630903

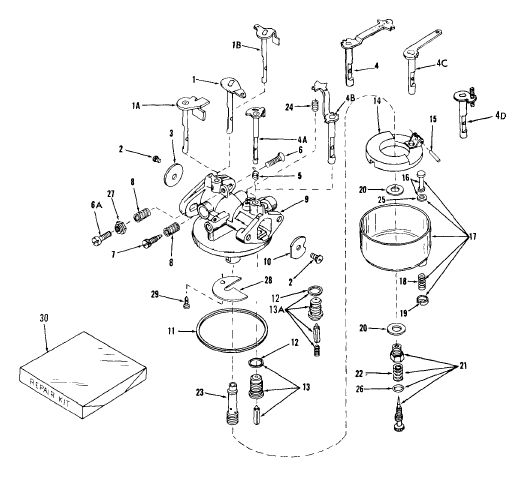

Tecumseh Carburetor 630903
Sl.No | Part Description | Part number | Notes | Purchase |
---|---|---|---|---|
1B | "Shaft & Lever Assembly., Throttle | 30715 | ||
2 | Screw, Sems, 6-32 x 3/16 | 30357 | ||
3 | Shutter, Throttle | 30726 | ||
4B | Shaft & Lever Assembly., Choke | 30852 | ||
6 | Screw, Throttle adjusting | 30717 | ||
8 | Spring, Adjustment. needle | 27114 | ||
9 | Body Assembly., Carburetor | 30851 | ||
10 | Shatter, Choke | 29503 | ||
11 | Gasket, Bowl-to-body | 30356 | ||
12 | Gasket, Seat | 27108 | ||
13 | Valve, Seat & Gasket Assembly. | 29154 | ||
14 | Float | 30354 | ||
15 | Shaft, Float | 27106 | ||
16 | Stem Assembly., Bowl drain | 27136A | replaces 27136 | |
17 | Bowl Assembly. | 32131 | replaces 30350 | |
18 | Spring, Bowl drain | 27136A | replaces 27137 | |
19 | Retainer, Bowl drain stem. | 27136A | replaces 27138 | |
20 | Gasket, Bowl-to-body | 27110A | replaces 27110 | |
21 | Needle Assembly., Power adjusting | 28945 | ||
22 | Spring, Power needle | 630786 | ||
23 | Nozzle, Main | 30355 | ||
24 | Spring, Choke stop | 27113 | ||
25 | Gasket, Drain stem | 27554 | ||
26 | "O" Ring | 27544 | ||
27 | Nut, Flexloc | 30719 | ||
30 | Repair Kit | 30721 |
Displaying Tecumseh 630903 carburetor, air filter and needle details with complete diagram and carburetor part details with troubleshooting flowcharts.
