630956A

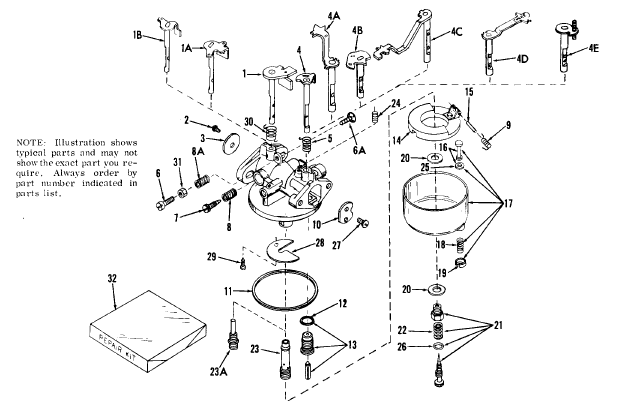

Tecumseh Carburetor 630956A

630956A

Sl.NoPart DescriptionPart numberNotesPurchase
1A"Shaft & Lever Assembly., Throttle30723
2Screw, Sems, 6-32 x 3/1630357
3Shutter, Throttle30726
4DShaft & Lever Assembly., Choke31686
6AScrew, Throttle adjusting31687
7Needle, Idle adjusting27112
8ASpring, Adjusting needle630786
8Spring, Adjusting needle27114
10Shutter, Choke30927
11Gasket, Bowl-to-body30356
12Gasket, Valve seat27108
13Valve, Seat & Gasket Assembly.29154
14Float30354
15Shaft, Float27106
16Stem Assembly., Bowl drain27136Areplaces 27136
17Bowl & Drain Assembly.32131replaces 30350
18Spring, Bowl drain27136Areplaces 27137
19Retainer, Bowl drain stem27136Areplaces 27138
20Gasket, Bowl-to-body27110Areplaces 27110
21Needle Assembly., Power adjusting28945
22Spring, Power needle630786
23Nozzle, Main30355
24Spring, Choke stop27113
25Gasket, Drain stem27554
26"O" Ring27544
27Screw, Sems650506replaces 630606
28Baffle, Carburetor30815
29Screw, Baffle30817
32Repair Kit30359
