630961A

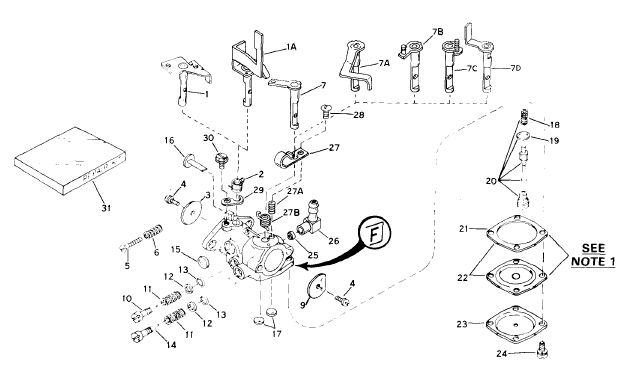

Tecumseh Carburetor 630961A

630961A

Sl.NoPart DescriptionPart numberNotesPurchase
1"Shaft & Lever Assembly., Throttle631059
2Spring, Throttle return631045
3Shutter, Throttle631036replaces 630733
4Screw, Shutter650506
5Screw, Idle regulating651025replaces 650417
6Spring, Idle speed screw630766
7DShaft & Lever Assembly., Choke631076
9Shutter, Choke630736
10Screw, Idle adj631562
11Spring, Adjustment. screw630738
12Washer, Adjustment. screw630739
13"O" Ring, Adjustment. screw630740
14Screw, Main adjustment630737
15Plug, Welch630748
17Plug, Welch632554replaces 630746
18Spring, Valve631049
19Gasket, Valve seat630742
20Inlet Needle, Seat, Gasket & Spring Assembly.630932A
21Gasket, Diaphragm630750Areplaces 630750
22Diaphragm Assembly,630978
23Cover, Diaphragm630751
24Screw, Cover650545
26Fitting, Fuel line632527replaces 631854
27Spring, Detent631048
28Screw650569
29Throttle shaft630955
30Screw650545
31Repair Kit631893Areplaces 631893
