630992B

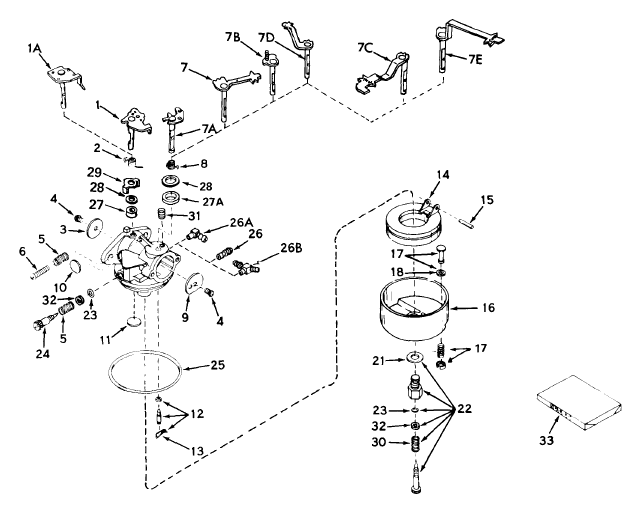

Tecumseh Carburetor 630992B

630992B

Sl.NoPart DescriptionPart numberNotesPurchase
1"Shaft & Lever Assembly., Throttle31834
2Spring, Throttle return631767replaces 632016
3Shutter, Throttle631036
4Screw, Throttle & Choke shutter650506
5Spring, Regulating screw630766
6Screw, Idle regulating651025replaces 650417
7Shaft & Lever Assembly., Choke31841Areplaces 31841
9Shutter, Choke..31837
10Plug, Welch630748
11Plug, Welch631027
12Inlet Needle, Seat & Clip Assembly.631021Breplaces 631021
13Clip, Inlet needle631022
14Float, Carburetor632019Areplaces 632019
15Shaft, Float631024
16Bowl, Float631867
21Gasket, Bowl-to-body27110Areplaces 27110
22Adj. Screw Assembly., Main31839
23"O" Ring, Adj. screw630740
24Screw, Idle adj.631838replaces 631078
25Gasket, Bowl-to-body631028Areplaces 631028
26Fitting, Fuel inlet632164replaces 631803
30Spring, Main adj. screw630738
31Spring, Choke positioning630735
32Washer630739
33Repair Kit31840
