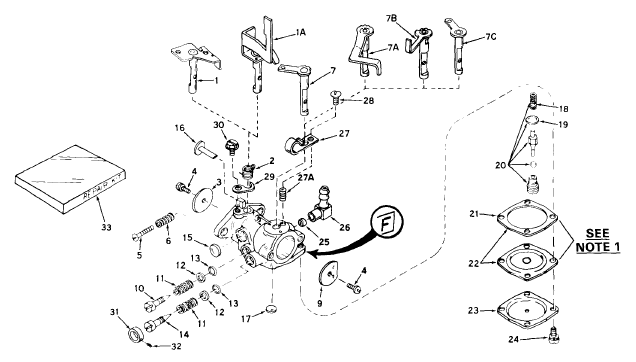

Tecumseh Carburetor 631075

631075

Sl.NoPart DescriptionPart numberNotesPurchase
1A"Shaft & Lever Assembly., Throttle631296
2Spring, Throttle return631066
3Shutter, Throttle631036
4Screw, Shutter, 4-40 x 3/16650506
5Screw, Idle regulating, 8-32 x 3/4651025replaces 650417
6Spring, Idle speed screw630766
7AShaft & Lever Assembly., Choke630971
9Shutter, Choke630736
10Screw, Idle adjustment631562
11Spring, Adjustment screw630738
12Washer, Adjustment screw630739
13"O" Ring, Adjustment screw630740
14Screw, Main adjustment.630737
15Plug, Welch630748
17Plug, Welch632554replaces 630746
18Spring, Valve631049
19Gasket, Valve seat630742
20Inlet Needle, Seat, Gasket & Spring Assembly.630932A
21Gasket, Diaphragm630750Areplaces 630750
22Diaphragm Assembly.630978
23Cover, Diaphragm630751
24Screw, Cover650545
26Fitting, Fuel line631289
27ASpring, Choke stop630735
29Retainer, Throttle shaft630955
30Screw650545
33Repair Kit631893Areplaces 631893
