Tecumseh Carburetor 631105

631105

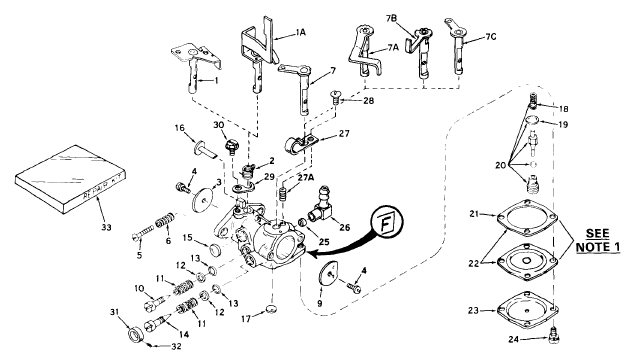

Sl.NoPart DescriptionPart numberNotesPurchase
1"Shaft & Lever Assembly., Throttle631106
2Spring, Throttle return631045
3Shutter, Throttle631036
4Screw, Shutter, 4-40 x 3/16650506
5Screw, Idle regulating, 8-32 x 3/4651025replaces 650417
6Spring, Idle speed screw630766
7CShaft & Lever Assembly., Choke631107
9Shutter, Choke630736
10Screw, Idle adjustment630898
11Spring, Adjustment screw630738
12Washer, Adjustment screw630739
13"O" Ring, Adjustment screw630740
14Screw, Main adjustment.630737
15Plug, Welch630748
16Element, Pump630953
17Plug, Welch632554replaces 630746
18Spring, Valve631049
19Gasket, Valve seat630742
20Inlet Needle, Seat, Gasket & Spring Assembly.630932A
21Gasket, Diaphragm630750Areplaces 630750
22Diaphragm Assembly.630978
23Cover, Diaphragm630751
24Screw, Cover650545
25Valve, Check631032
26Fitting, Fuel line631031
27Spring, Detent631048
28Screw650569
29Retainer, Throttle shaft630955
30Screw650545
31Collar570375
32Set Screw, 6-32 x 1/4650584
33Repair Kit631893Areplaces 631893
