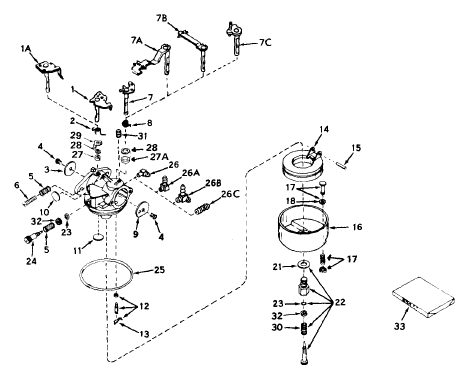

1 | "Shaft & Lever Assembly., Throttle | 31834 | | |
2 | Spring, Throttle return | 631767 | replaces 631279A | |
3 | Shutter, Throttle | 631036 | | |
4 | Screw, Throttle & Choke shutter | 650506 | | |
5 | Spring, Regulating screw | 630766 | | |
6 | Screw, Idle regulating | 651025 | replaces 650417 | |
7 | Shaft & Lever Assembly., Choke | 630973 | | |
8 | Spring, Choke return | 632045 | | |
9 | Shutter, Choke | 631037 | | |
10 | Plug, Welch | 630748 | | |
11 | Plug, Welch | 631027 | | |
12 | Inlet Needle, Seat & Gasket Assembly. | 631021B | replaces 631021 | |
13 | Clip, Inlet needle | 31022 | | |
14 | Float, Carburetor | 632019A | replaces 632019 | |
15 | Shaft, Float | 631024 | | |
16 | Bowl, Float | 631867 | | |
21 | Gasket, Bowl-to-body | 27110A | replaces 27110 | |
22 | Adjustment. Screw Assembly., Main | 631026 | | |
23 | "O" Ring, Adjustment. screw | 630740 | | |
24 | Screw, Idle adi | 631838 | replaces 631078 | |
25 | Gasket, Bowl-to-body | 631028A | replaces 631028 | |
26B | Fitting, Fuel inlet | 631804 | | |
27 | Seal, Dust | 631183 | replaces 631971 | |
27A | Seal, Dust | 631183 | | |
28 | Washer, Dust seal | 631184 | | |
29 | Retainer, Dust seal | 631972 | | |
30 | Spring, Main adi. screw | 630738 | | |
32 | Washer | 630739 | | |
33 | Repair Kit | 631029 | | |
