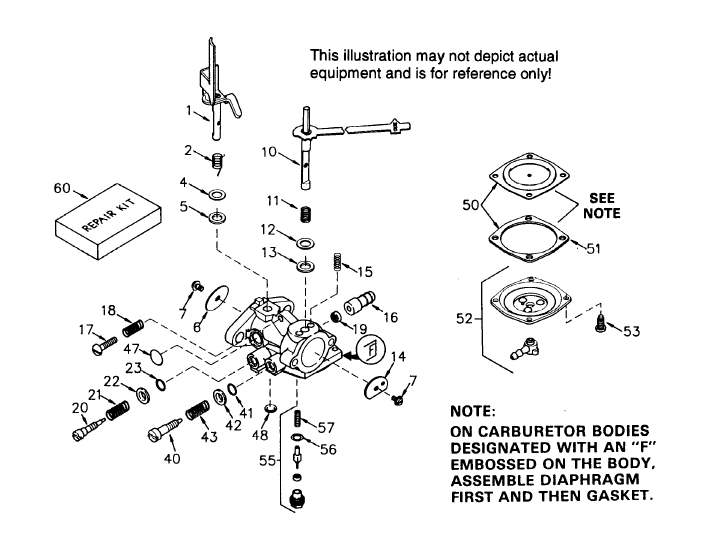

Tecumseh Carburetor 631145
Sl.No | Part Description | Part number | Notes | Purchase |
---|---|---|---|---|
0 | "Carburetor | 631145 | ||
1 | SHAFT & LEV | 631615 | ||
2 | SPRING | 631767 | ||
6 | SHUTTER | 631036 | ||
7 | Screw, 4-40 x 1/4" | 650506 | ||
10 | SHAFT & LEV | 31841A | replaces 31841 | |
14 | SHUTTER | 630736 | ||
15 | SPRING | 630735 | ||
16 | FUEL FITTING | 632164 | ||
17 | SCREW | 651025 | replaces 650417 | |
18 | SPRING | 630766 | ||
20 | ADJUSTMENT SCREW | 631562 | ||
21 | SPRING | 630738 | ||
22 | WASHER | 630739 | ||
23 | O RING | 630740 | ||
23 | O RING | 630740 | ||
40 | ADJUSTMENT SCREW | 630737 | ||
42 | WASHER | 630739 | ||
43 | SPRING | 630738 | ||
47 | WELCH PLUG | 630748 | ||
48 | WELCH PLUG | 632554 | replaces 630746 | |
50 | Diaphragm Assembly. | 630978 | ||
51 | GASKET | 630750A | ||
52 | COVER | 630751 | ||
53 | Screw, 6-32 X 3/8" | 650545 | ||
55 | Inlet needle, Valve, Seat & Gasket As | 630932A | ||
56 | GASKET | 630742 | ||
57 | SPRING | 631049 | ||
60 | REPAIR KIT | 631893A | replaces 631893 |
