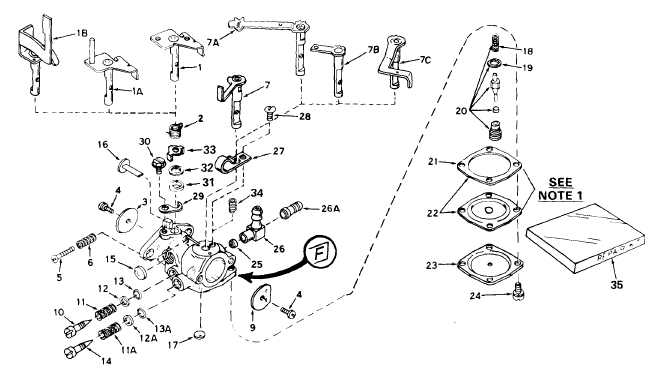

1B | "Shaft & Lever Assembly., Throttle | 631296 | | |
2 | Spring, Throttle return | 631066 | | |
3 | Shutter, Throttle | 631036 | | |
4 | Screw, Throttle & Choke shutter | 650506 | | |
5 | Screw, Idle regulating | 651025 | replaces 650417 | |
6 | Spring, Idle regulating | 630766 | | |
7C | Shaft & Lever Assembly., Choke | 630971 | | |
9 | Shutter, Choke | 630736 | | |
10 | Screw, Idle Adjustment. | 631562 | | |
11 | Spring, Idle Adjustment. screw | 630738 | | |
11A | Spring, Main Adjustment. screw | 630738 | | |
12A | Washer, Main Adjustment. screw | 630739 | | |
12 | Washer, Idle Adjustment. screw | 630739 | | |
13 | "O" Ring, Idle Adjustment. screw | 630740 | | |
13A | "O" Ring, Main Adjustment. screw | 630740 | | |
14 | Screw, Main adjustment | 630737 | | |
15 | Plug, Welch | 630748 | | |
17 | Plug, Welch | 632554 | replaces 630746 | |
18 | Spring, Valve | 631049 | | |
19 | Gasket, Valve seat | 630742 | | |
20 | Inlet Needle, Seat, Gasket & Spring Assembly. | 630932A | | |
21 | Gasket, Diaphragm | 630750A | replaces 630750 | |
22 | Diaphragm Assembly. | 630978 | | |
23 | Cover, Diaphragm | 630751 | | |
24 | Screw, Cover | 650545 | | |
26A | Fitting, Fuel line | 632164 | replaces 631803 | |
29 | Retainer, Throttle shaft | 630955 | | |
30 | Screw, Retainer | 650569 | | |
34 | Spring, Choke positioning | 630735 | | |
35 | Repair Kit | 631893A | replaces 631893 | |
