631243

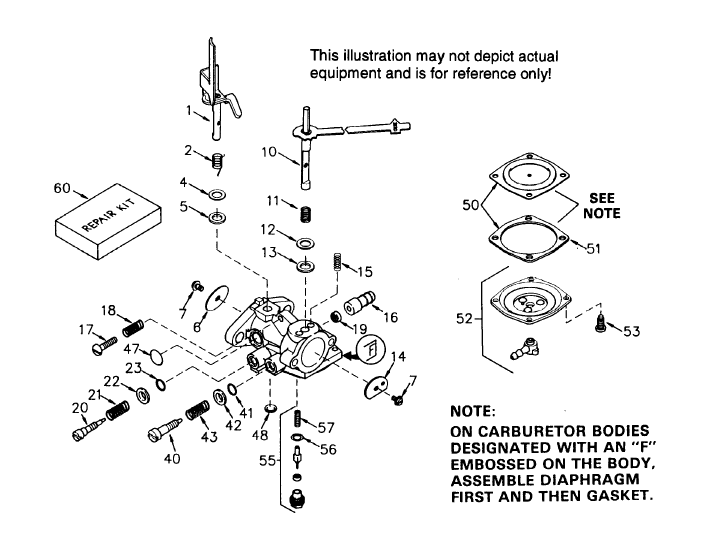

Tecumseh Carburetor 631243
| Sl.No | Part Description | Part number | Notes | Purchase |
|---|---|---|---|---|
| 0 | "Carburetor | 631243 | ||
| 1 | SHAFT & LEV | 631615 | ||
| 2 | SPRING | 631767 | ||
| 4 | WASHER | 631184 | ||
| 5 | WASHER | 631183 | ||
| 6 | SHUTTER | 631036 | ||
| 16 | FUEL FITTING | 632527 | ||
| 17 | SCREW | 651025 | replaces 650417 | |
| 18 | SPRING | 630766 | ||
| 19 | CHECK VALVE | 631201 | ||
| 20 | ADJUSTMENT SCREW | 631562 | ||
| 21 | SPRING | 630738 | ||
| 22 | WASHER | 630739 | ||
| 23 | O RING | 630740 | ||
| 35A | Screw, 4-40 x 1/4" | 650506 | ||
| 40 | ADJUSTMENT SCREW | 630737 | ||
| 41 | O RING | 630740 | ||
| 42 | WASHER | 630739 | ||
| 43 | SPRING | 630738 | ||
| 47 | WELCH PLUG | 630748 | ||
| 48 | WELCH PLUG | 632554 | replaces 630746 | |
| 50 | Diaphragm Assembly. | 630978 | ||
| 51 | GASKET | 630750A | ||
| 52 | COVER | 32185 | ||
| 53 | Screw, 6-32 X 3/8" | 650545 | ||
| 55 | Inlet needle, Valve, Seat & Gasket As | 630932A | ||
| 56 | GASKET | 630742 | ||
| 57 | SPRING | 631049 | ||
| 60 | REPAIR KIT | 631893A | replaces 631893 |
